Name: China 10 Ton Chiller Manufacturers Suppliers Factory - Customized 10 Ton Chiller Quotation - Kansa
Brand: Kansa
SKU: 286304754

Product Performance

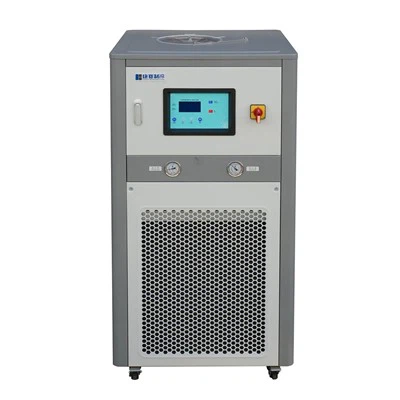

The ICA-8 chiller is a 6-ton chiller with a cooling capacity of 23kW. It uses a Panasonic compressor, high and low speed fans, and has an adjustable temperature range of 7-35°C. It is a high-performance and easy-to-use device. Detailed parameters are as follows:

Items / Model			ICA-8
Cooling capacity		kW	23.0
Cooling capacity		10³ kcal/h	19.8
Power source		V/ph/Hz	380/3/50
Total power input		kW	7.9
Rated current		A	15
Compressor	Type		Scroll type
	Power input	kW	6.6
	Quantity	net	1
Condenser	Type		Efficient internal thread fin type
Condenser	Max. Press.	bar	45
Cooling fan	Fan type		Efficient axial flow
Cooling fan	Fan quantity	net	2
Evaporator	Type		Stainless shell and tube (stainless heat exchange tube)
Evaporator	Water press.	bar	16
Pump	Type		Stainless steel centrifugal type
	Head	m	30
	Power	kW	0.75
	Flow rate	m³/h	4.0
Tank capacity		L	100
Water pipe size		DN	25
Protection			Pressure, overload, Antifreeze, Delay, Over temperature, Flow Protection
Noise		db(A)	64
Weight		kg	260
Dimensions(LWH)		mm	13506801360
Package dimensions		mm	15508101420
Gross weight		kg	300

Our Advantages

As a chiller manufacturer with 20 years of R&D and production experience, we have accumulated rich industry solutions in the field of industrial refrigeration. Based on the application scenarios or required technical parameters provided by our clients, we can offer customized refrigeration solutions, going beyond simply providing equipment. Furthermore, we have extensive OEM and ODM experience, offering clients various cooperation methods.

Product Application

The 6-ton chiller plays a vital role in industries and settings such as chemical reactors, semiconductors, pharmaceuticals, medical devices, food processing, plastics, metal processing, CNC centers, welding equipment, and laboratories. It uses compressors, water pumps, and expansion valves from well-known brands, and is equipped with Kansa's self-made evaporator, condenser, water tank, and sheet metal enclosure, assembling it into a high-performance, long-lasting refrigeration unit.
